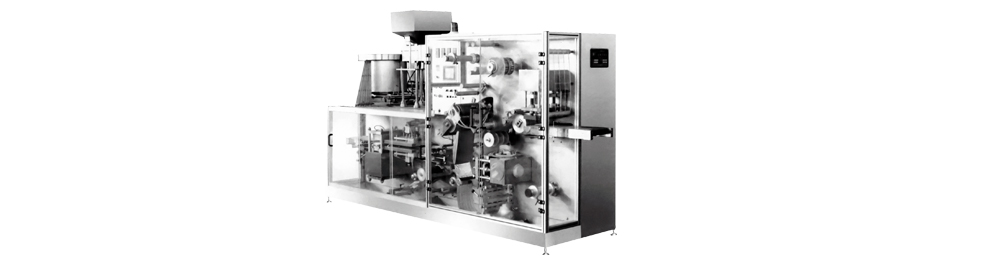

    DPH190輥板式泡罩包裝機
    DPH190 ROLLER AND PLATE COMBINING TYPE BLISTER PACKING MACHINE

    • 特點
      板式正壓吹塑成型、輾式熱封、包裝效率高。
      可與通用上料機、掉頭上料機、圓盤上料機配套使用。
      PLC控制無級變頻調速,調整范圍廣泛,傳動噪音低,伺服電機控制。
      自動打批號,壓斷裂線。
      主要元器件均采用進口。
      整機采用全封閉方式,符合GMP要求。
      Features
      The plate forming by positive pressure the roller type heating sealing having higher packing speed.
      It is possible to form a complete set with general feeders turning feeders and disk feeders.
      Controlled by PLC the stepless frequency conversion variable speeds having wide adjustment range extreme low noise.
      Automatically printing serial numbers and pressing breaking line.
      Main components are imported.
      The machine is totally-enclosed accords with GMP requirements.

    • 適用范圍
      各種規格的膠臣、素片、糖衣片、膠丸及異型片,巧克力豆、口香糖等固態物料。
      Application
      Applicable for different specifications of capsules tablets sugar-coated tablets pills and grotesque tablets chewing gum and chocolate beans etc.small food.

    • 技術參數 Specifications

    最大成型深度Max forming depth

    10mm

    沖裁次數 Cutting frequency

    ≤100次/分(times/ Min. )

    包裝效率 Packing speed

    400板/分(plates/ Min.)

    包裝材料 Packing material

    PVC 215×0.25mm,PTP 215×0.02mm

    最大步進距離? Max inching 204mm
    耗氣量 Air consumption 300L/Min.
    耗水量 Water consumption??

    4L/Min.

    電源總功率Installed power 11kW
    電壓Voltage 380V/50Hz
    外形尺寸(長×寬×高)S ize (L×W×H)? 3500×950×1700mm
    重量 Weight 2000kg
