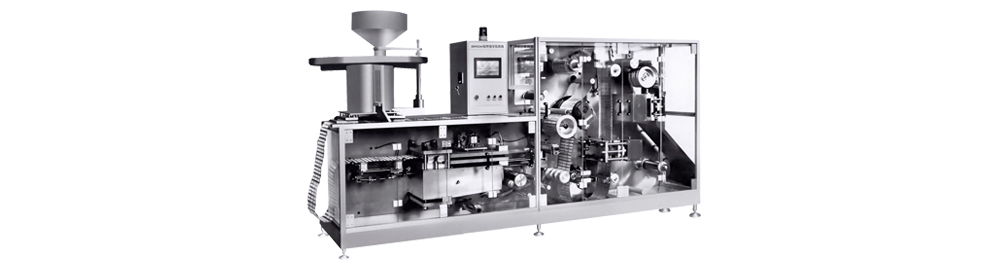

    DPH260輥板式泡罩包裝機
    DPH260 ROLLER AND PLATE COMBINING TYPE BLISTER PACKING MACHINE

    • 特點
      板式正壓吹塑成型、輥式熱封、包裝效率高;
      可與通用上料機、掉頭上料機、圓盤上料機配套使用;
      PLC控制無級變頻調速,調整范圍廣泛,傳動噪音低,伺服電機控制;
      光電踉蹤、浮動對標;
      自動打批號,壓斷裂線;
      主要元器件均采用進口;
      整機采用全封閉方式,符合GMP要求。
      Features
      The plate forming by positive pressure the roller type heating sealing having higher packing speed.
      It is possible to form a complete set with general feeders turning feeders and disk feeders.
      Controlled by PLC the stepless frequency conversion variable speeds having wide ad-justment range extreme low noise.
      Photoelectric tracking device and floating alignment mark.
      Automatically printing serial numbers and pressing breaking line.
      Main components are imported.
      The machine is totally-enclosed accords with GMP requirements.

    • 適用范圍
      各種規格的膠襄、素片、糖衣片、膠丸及異型片,巧克力豆、口香糖等固態物料。
      Application
      Applicable for different specifications of capsules tablets sugar- coated tablets pills and grotesque tablets chewing gum and chocolate beans etc.small food.


    • 技術參數 Specifications

    最大成型深度 Max forming depth 10mm
    沖裁次數 Cutting frequency ≤120次/分(times/Min.)
    包裝效率 Packing speed 500板/分(plates/Min.)
    包裝材料 Packing material PVC 260×0.25mm
    最大步進距離 Max inching 215mm
    耗氣量 Air consumption 300L/Min.
    耗水量 Water consumption 6L/Min.
    電源總功率 Installed power 13kW
    電壓 Voltage 380V/50Hz
    外形尺寸(長×寬×高)S ize (L×W×H)? 3500×1050×1800mm
    重量 Weight 3000kg
